Credit Card / Debit Card Screen

Tick-It! Trak Pro is integrated with several IP Based Credit/Debit Card Processors. Using this system, you can achieve credit card authorizations in 3 seconds or less!

To process cards by swiping them, your POS station must be equipped with a Magnetic Card Reader that acts as a “keyboard wedge”, which means that it sends information from the card as if you typed in on the keyboard. Examples of such devices are:

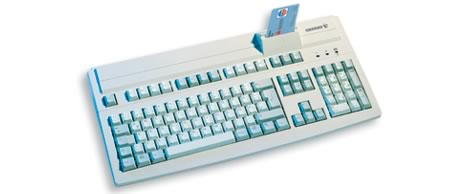

POS Keyboards with built-in readers.


Externally mounted Credit Card Slot Readers.

To process DEBIT CARDS, you will also require an external PIN PAD DEVICE.  See Other POS Hardware.

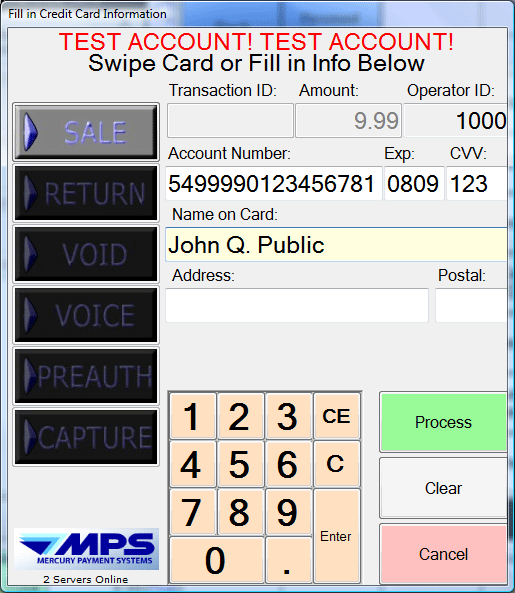

Your POS Station must also have a full time connection to the Internet to pass information to and from your Credit Card Processing Servers, such as Mercury Payment Systems, or other. The start up screen of the this POS Module will display the status of the connection to the Payment Servers with this graphic:

If you are using a different credit card processor, the graphic will be different, but the principle is the same.

If you do not have credit card readers attached to your POS, or if the card you are presented does not read when you scan it, you will have to enter the information manually.

When a card is processed, an optional sound will play for approvals, and a different optional sound will play for failed cards.
