Adding a Text String

There are times you might want to have a specific phrase on your document, such as NO RETURNS OR EXCHANGES.  We call such phrases "Text Strings" or "Text Constants".  You can add a text string to your document, and set the border and font style and colors as well as the line thickness.  You can also ROTATE the text, set alignment properties and set any "helper hints" for FGL code generation for older thermal printers.  Text Strings are contained in "Print Areas" that you draw out.

You can begin drawing a Print Area for your text string in one of three ways:

1. From the EDIT MENU, select INSERT INTO DOCUMENT, then TEXT CONSTANT
2. From the UPPER TOOLBAR, click on the TEXT button
3. From the LOWER STATUS BAR, click on the ADD A TEXT CONSTANT button

While you are drawing a print area on your document, you will see something like this:

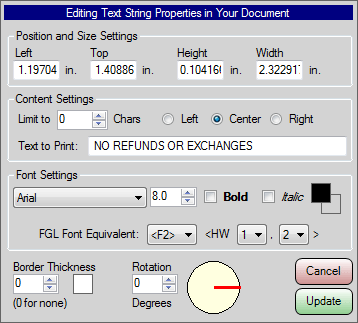

Once you let up on the mouse button, the following properties dialog will appear:

Here you can set the specifics of your Text String.

To Precisely Position the Print Area of Your Text:
The values for the upper left corner and the Height and Width of the print area are available for manual editing as shown.  You can enter PRECISE values if the numbers that arise from mouse dragging are not to you specifications.

To Set the Content and Layout of Your Text:
Enter the text you wish to print in the field labeled TEXT TO PRINT.  You can instruct the computer to "clip" the text at a certain number of characters using the LIMIT TO bumper buttons.  Select the desired alignment within the print area, either Left, Center or Right.

To Set Font and Color Attributes for Your Text:
Use the pull down list to select the desired font for your text.  Use the bumper buttons to set the font size in "points".  Check the options for BOLD or ITALIC as desired.  (Note: not all Windows fonts support the Bold and Italic attributes, and NO FGL font does)  Double click on the color chits next to the italic control, and select the foreground and background colors for your text.  (Note: not all Windows printers support text coloring, and NO FGL printer does)

FGL "Helper Hints":
To make automatic code generation for FGL printers possible, you need to supply the EQUIVALENT FONT to use on your thermal ticket printer.  This is never likely to be an EXACT match, since FGL printers only have 13 internal fonts, and Windows can support a gadzillion True Type fonts.  ("gadzillion" is a real number, and is the projected US Debt in 2015).  Although the firmware in these printers varies, making the fonts produced by the printers different, here are a couple of settings we find work out OK with the printers in our offices:

On Windows Printers FGL Equivalent Font
ARIAL 8 Point, Not Bold, Not Italic <F2> <HW1,2>
ARIAL 11 Point, Not Bold, Not Italic <F3> <HW1,1>
OCRB 11.5 Point, Not Bold, Not Italic <F3> <HW2,1>

You can experiment with your printer and installed Windows Fonts for other reasonable combinations.

To Put a Border Around Your Text:
Click on the Border Thickness Bumper Buttons, and set the desired thickness in "pixels".  A value of zero results in no border at all.  Double click on the color chit next to the border thickness control, and select a color for your border line.

To Rotate Your Text:
Click on the Rotation Bumper Buttons, and set the desired angle in degrees.  A value of zero results in no rotation at all.
For FGL Printers, only the values of 0, 90, 180 and 270 are respected.

To EDIT the properties of an existing text string in your document, simply RIGHT CLICK on it to bring up the properties dialog shown above.
