Sections

Seat Types define LOGICAL BOUNDARY attributes of the seats in your venue. Where Section 101 ends and Section 102 begins is entirely up to you (and your venue's architect). To define sections, right click on the display quadrant anywhere for the Pop Up Menu. Select Manage Types and Classes, then select Manage Sections for this Quadrant:

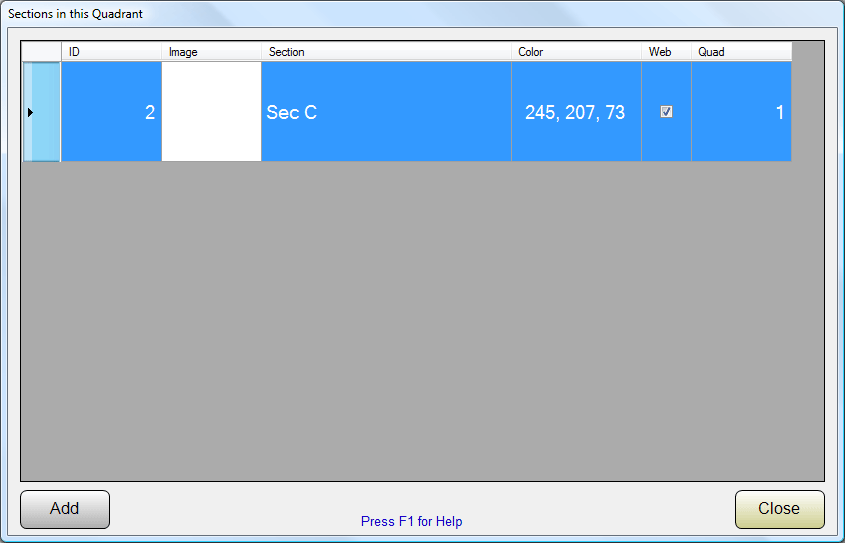

The following window will appear:

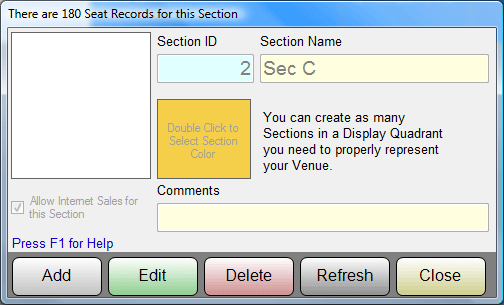

You can create as many Sections that you need to build your Display Quadrant. To EDIT an existing Section, double click on in from the list. To CREATE a new Section, click the ADD button. In the above example, we have previously created a single section called SEC C. Sections are tied to SPECIFIC Display Quadrants. The are NOT global in nature. Any Section you create is available ONLY for the Display Quadrant it was created in. When editing or creating a Section, you will see a window like this:

In this example, we have a Section called SEC C. It has been assigned a Golden Yellow sort of color, and Internet sales have seen set to ALLOWED for this section. No comment has been entered
